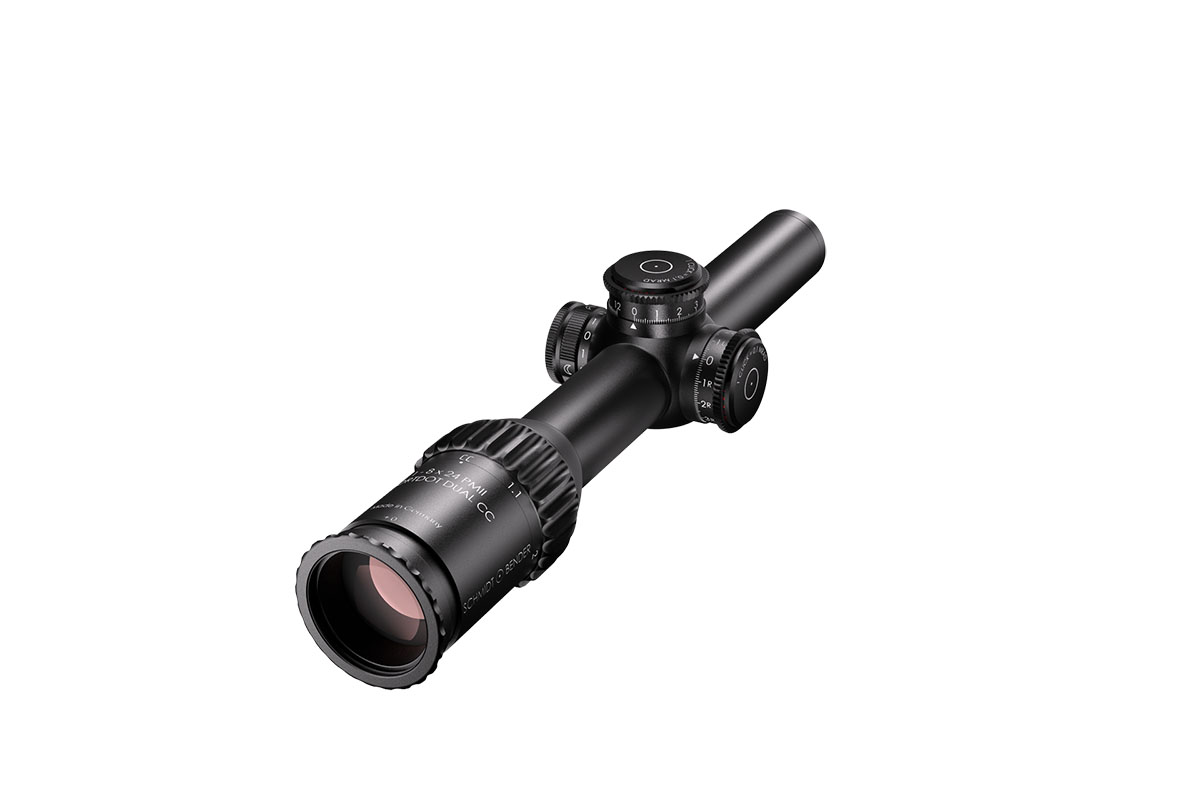

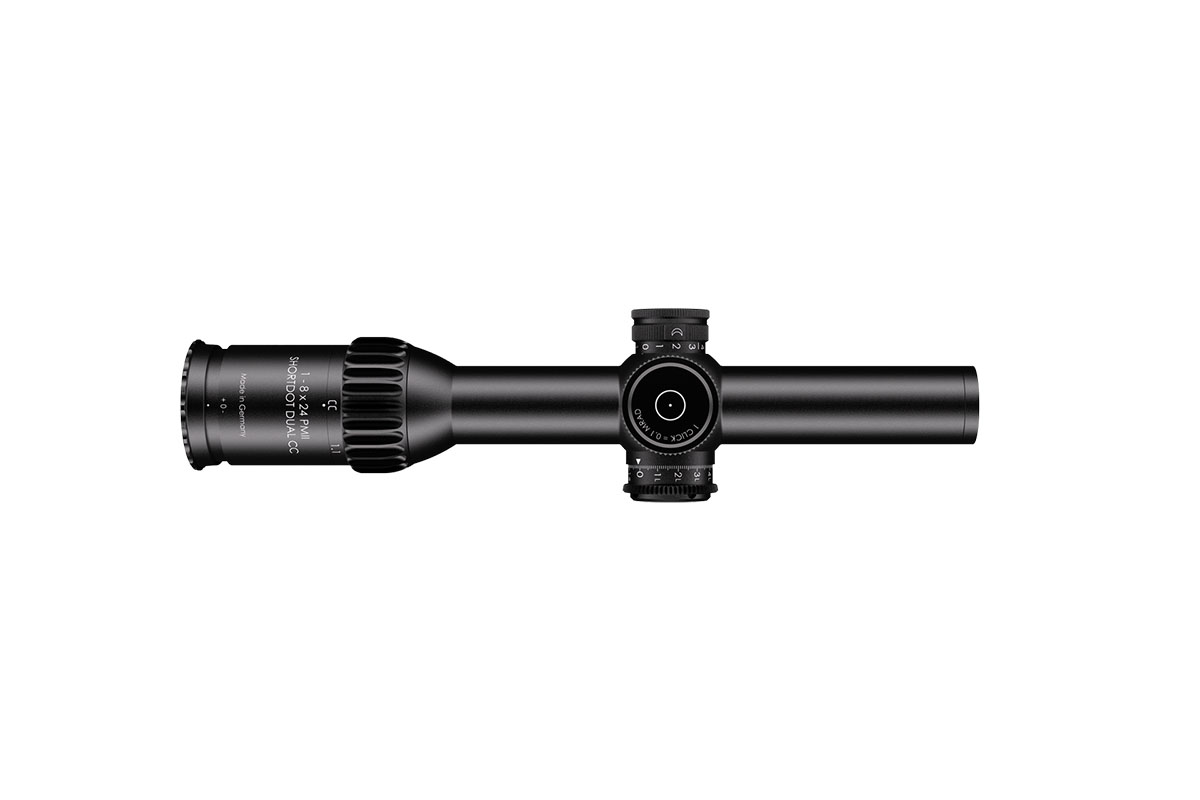

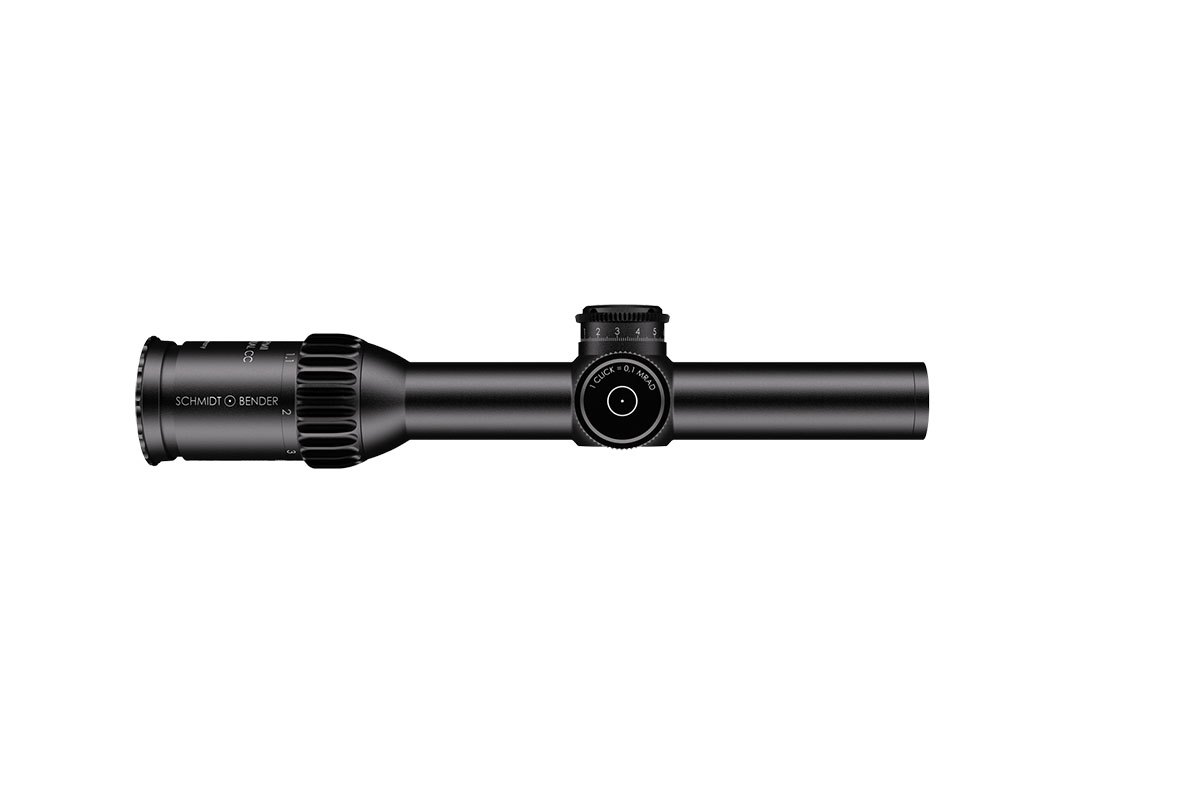

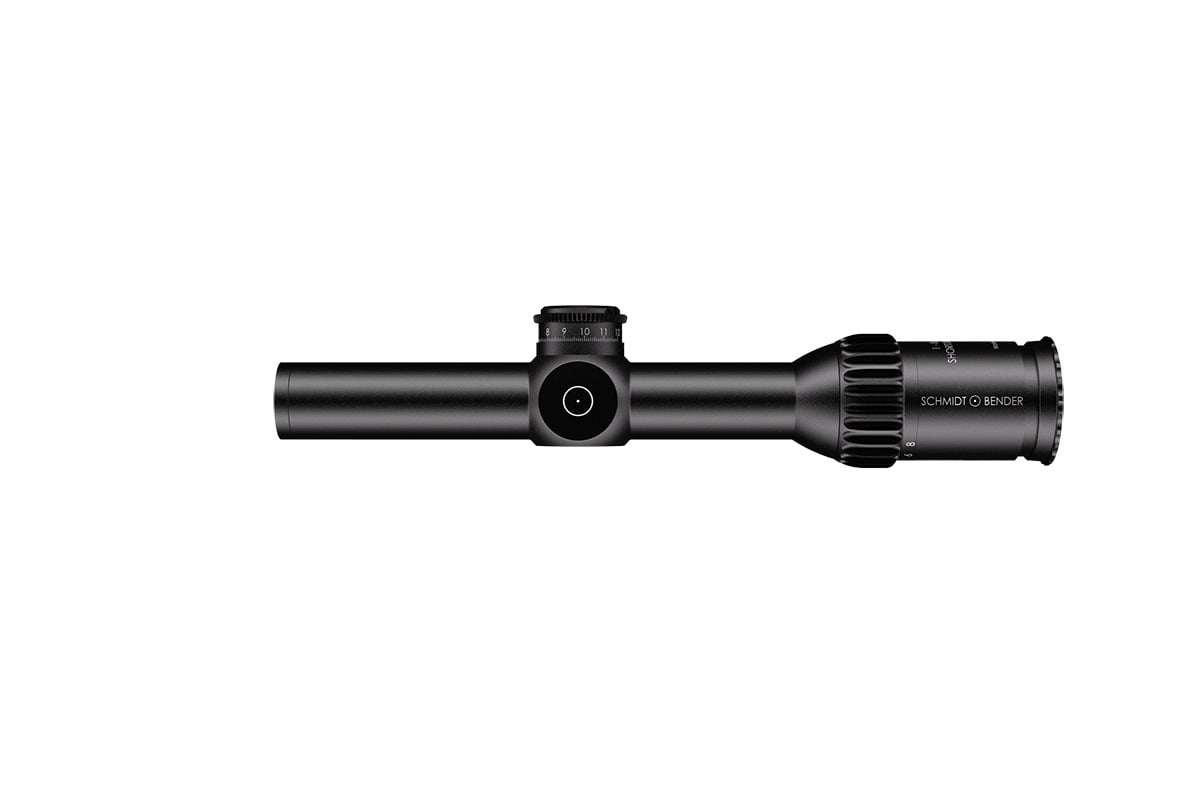

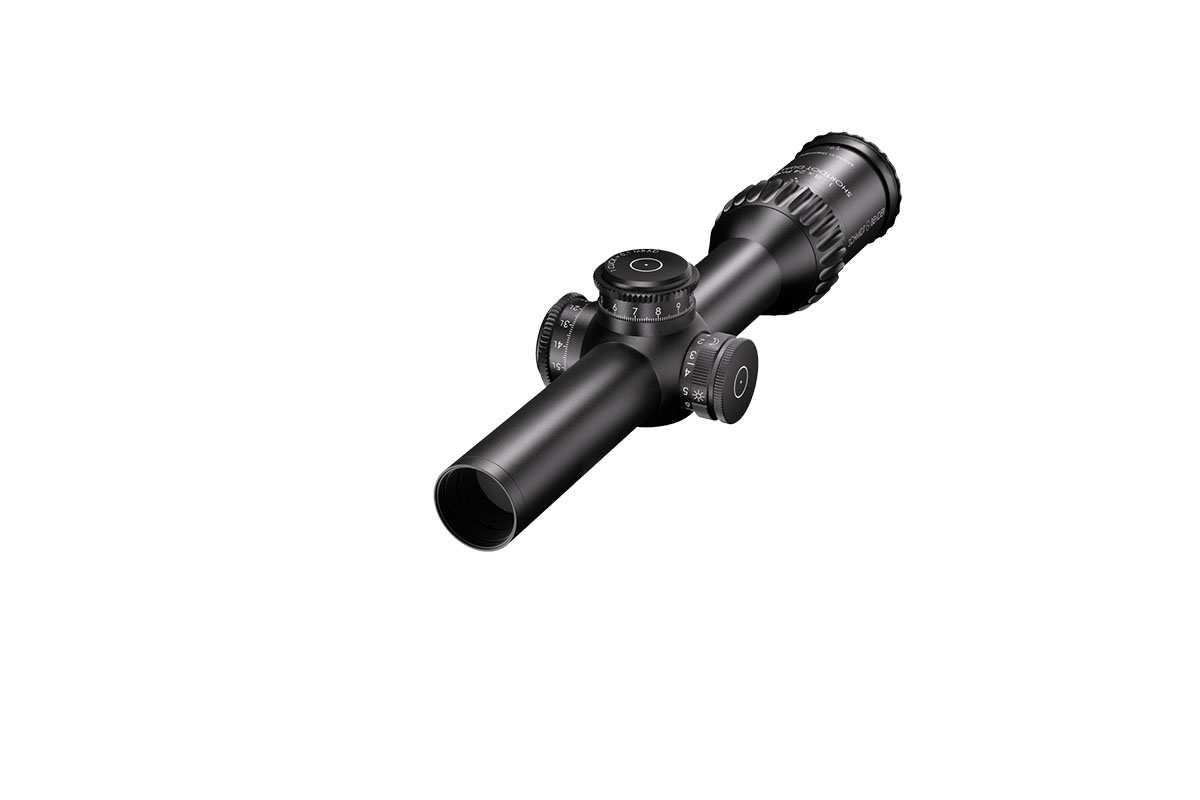

SCHMIDT U. BENDER 1-8x24 PM II ShortDot Dual CC MDR 1cm cw ST MTC LT / ST ZC LT
Support
The 1–8x24 PM II ShortDot Dual CC offers exceptional versatility with its dual reticle system, ideal for both close-quarters and long-range shooting.
SCHMIDT U. BENDER 1-8x24 PM II ShortDot Dual CC MDR 1cm cw ST MTC LT / ST ZC LT
Variations
Filters:
Colour
Black
FDE
Variations:
Variations:
Color: Black
Product no.: EU2015739
Not available
4614.66
GBP
0
£4,614.66
*
Color: Black
Product no.: EU2015740
Not available
4614.66
GBP
0
£4,614.66
*
Color: Black
Product no.: EU2015741
Not available
4614.66
GBP
0
£4,614.66
*
Color: Black
Product no.: EU2015742
Not available
4614.66
GBP
0
£4,614.66
*
Color: FDE
Product no.: EU2015743
Not available
Color: FDE
Product no.: EU2015744
Not available
Color: FDE
Product no.: EU2015745
Not available
Color: FDE
Product no.: EU2015746
Not available
0
0
8
GBP
Not available.
Product no.: EU2015739
Mfr. No.: 683-811-44E-K1-H1
Notify on availability 4614.66 GBP
0
0
8
GBP
Description
Specification
Customers reviews
Accessories
SCHMIDT U. BENDER 1-8x24 PM II ShortDot Dual CC MDR 1cm cw ST MTC LT / ST ZC LT
Description:
The 1‑8×24 PM II ShortDot Dual CC is a premium multipurpose riflescope designed to bridge ultra‑fast close‑quarters engagement and precision mid‑range shooting. With a full 1–8× magnification range, it integrates both a high‑visibility red‑dot sight for rapid acquisition and a tactical reticle for comprehensive zoom usage.
Key Features and Highlights
Dual focal plane system: Combines a daylight‑visible red dot in the second focal plane (SFP) with a tactical reticle in the first focal plane (FFP) for consistent hold‑points across the zoom range.
Patented Close‑Combat Mode (CC‑Mode): When set at 1× magnification the parallax is fixed at approx. 7 m for true parallax‑free shooting at close range; above ~1.1× it transitions to ~100 m enabling accurate mid‑range engagement.
Large exit pupil and generous eye relief: Optimized for fast, intuitive use in dynamic or static shooting scenarios—providing comfortable alignment whether standing, kneeling or prone.
Compact and rugged design: With a 30 mm main tube diameter, length of approx. 293 mm and weight of approx. 635–650 g depending on configuration, this scope is built to handle extreme conditions—including low temperatures and high recoil/shock.
High optical quality: Field of view spans roughly 35.3–4.9 m at 100 m across the zoom range, offering wide situational awareness at low magnification and refined detail at higher zoom.
Precision mechanics: Turrets are ultra‑low profile, lockable, extremely durable and designed for exacting use in tactical or competition environments.
Typical Specifications
Magnification: 1–8×
Focal Plane: Dual (1st and 2nd)
Parallax: CC‑Mode ~7 m; Standard Mode ~100 m (optional up to ~300 m)
Field of View: ~35.3–4.9 m @100 m
Exit Pupil: ~9.8–3.0 mm
Eye Relief: ~90 mm
Tube Diameter: 30 mm
Length: ~293 mm
Weight: ~635–650 g
Key Features and Highlights
Dual focal plane system: Combines a daylight‑visible red dot in the second focal plane (SFP) with a tactical reticle in the first focal plane (FFP) for consistent hold‑points across the zoom range.
Patented Close‑Combat Mode (CC‑Mode): When set at 1× magnification the parallax is fixed at approx. 7 m for true parallax‑free shooting at close range; above ~1.1× it transitions to ~100 m enabling accurate mid‑range engagement.
Large exit pupil and generous eye relief: Optimized for fast, intuitive use in dynamic or static shooting scenarios—providing comfortable alignment whether standing, kneeling or prone.
Compact and rugged design: With a 30 mm main tube diameter, length of approx. 293 mm and weight of approx. 635–650 g depending on configuration, this scope is built to handle extreme conditions—including low temperatures and high recoil/shock.
High optical quality: Field of view spans roughly 35.3–4.9 m at 100 m across the zoom range, offering wide situational awareness at low magnification and refined detail at higher zoom.
Precision mechanics: Turrets are ultra‑low profile, lockable, extremely durable and designed for exacting use in tactical or competition environments.
Typical Specifications
Magnification: 1–8×
Focal Plane: Dual (1st and 2nd)
Parallax: CC‑Mode ~7 m; Standard Mode ~100 m (optional up to ~300 m)
Field of View: ~35.3–4.9 m @100 m
Exit Pupil: ~9.8–3.0 mm
Eye Relief: ~90 mm
Tube Diameter: 30 mm
Length: ~293 mm
Weight: ~635–650 g
